Description

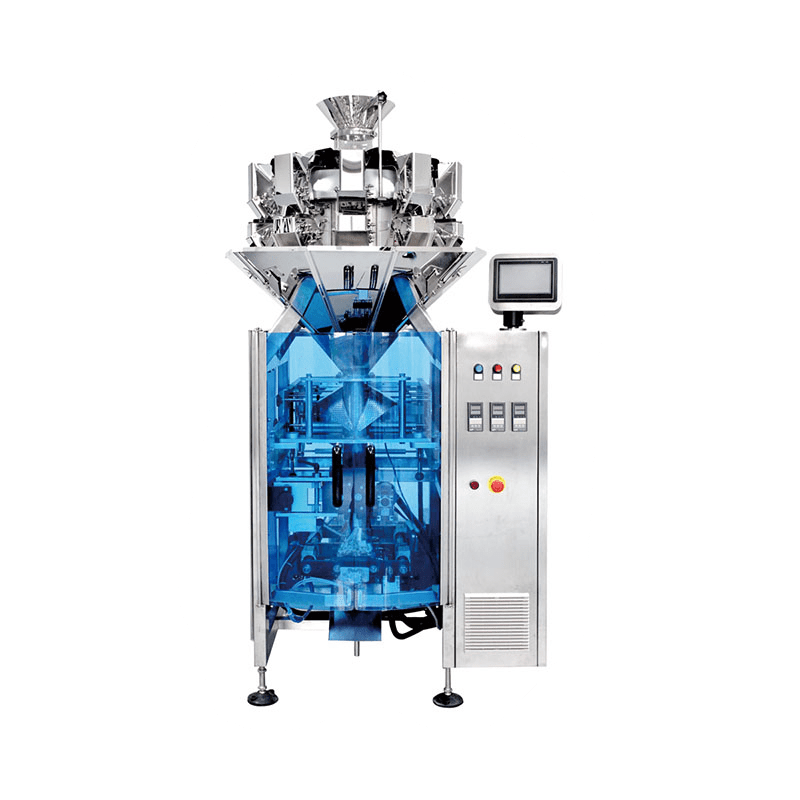

The weighing and packaging machine is a combination of a miniature multi-head scale and a vertical packaging machine, and the weighing and packaging integrated PLC program control. Fully automatic metering, filling and bag making, date of printing, packaging output, suitable for weighing, tea, seeds, coffee beans, chocolate and other small particles. The mini combined weighing and packaging machine is cheap, economical and has low maintenance costs.
Technical Specifications:
| Heads no. | 10 | 14 |
| Weighing range. | 100-1000g | 100-2000g |
| Accuracy | *0.5 | *0.5 |
| Max Speed | 65/pm | 100/pm |
| Hopper Volume | 500ml | 500ml |
| Film width | 140-360mm | 140-360mm |
| Bag size | 60-250(L)*60-170(W) | 60-250(L)*60-170(W) |
| Packaging Speed | 65Bags/min | 15-100Bags/min |
| Film pulling driven by | Servo Motor | Servo Motor |
| Horizontal sealing driven by | Air Cylinder | Servo Motor |
| Power requirement | 220V/3.8KW/50/60HZ | 220V/4.75KW/50/60HZ |
| Machine size | 1306(L)*1059(W)*1902(H)mm | 1325(L)*1071(W)*2025(H)mm |
| Machine weight | 550kg | 600kg |
